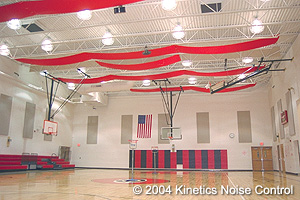

Wave Baffles are designed for horizontal suspension in a wave-like form at the ceiling
level. This provides high levels of sound absorption for reducing reverberation in large,
high cubic volume rooms. As an option the baffle can be finish faced on both sides and hung
vertically as an acoustical banner.
The Wave Baffle is produced in custom sizes with suspension hardware that can be
engineered to create the desired amount of vertical drop between suspension points. The
typical vertical drop at the mid-point of the baffle is 6 inches or greater. A variety
of finishes are available for baffles up to 48" wide and 30' long. All edges are
sewn for greater durability than heat sealed baffles.
Based on an installed cost per sabin (unit of sound absorption) analysis, Wave Baffles
are very economical.
|
